XJY-2 Portable Platform Clearance Measuring Instrument

Name: XJY-2 Portable Platform Clearance Measuring Instrument
Brand: Antong

FJ-02

Antong XJY-2 Portable Platform Clearance Measuring Instrument

EQUIPMENT & APPLICATION

Designed for field operations

Uses the rail surface as a reference for single-point horizontal and vertical platform clearance, gauge and cant measurements. Supports spot checks and Bluetooth app communication.

Enquire about this product View brochure page

Confirm configuration, range and operating conditions for your project.

Technical & application details

V91 · Page 46

Horizontal dimension 1300 to 2000 mm

Vertical dimension 0 to 1350 mm

Track gauge 1410 to 1470 mm

Cant -100 to 100 mm

Horizontal error -3.0 to 0 mm

Vertical error 0 to 2.0 mm

Weight ≤6 kg

Battery life ≥12 h

Charging 5V/3A, Approx. 3 to 5 h

Data transfer Bluetooth, app

CUSTOM SIZES FOR WIDE PLATFORMS

Dimensions can be customised for wide-platform measurement. Range and configuration are confirmed for each project.

Standards / metrological references: GB 146.2—2020 Gauge for Standard Gauge Railways — Part 2: Structure Gauge; JJF(CR) 042—2021 Calibration Specification for Platform Clearance Measuring Instruments

Source: Antong Company & Product Brochure V91. Refer to the original brochure and consult our technical team for configuration and applicability of specifications and standards.

Related equipment

Explore this category

FJ-01 / Platform clearance

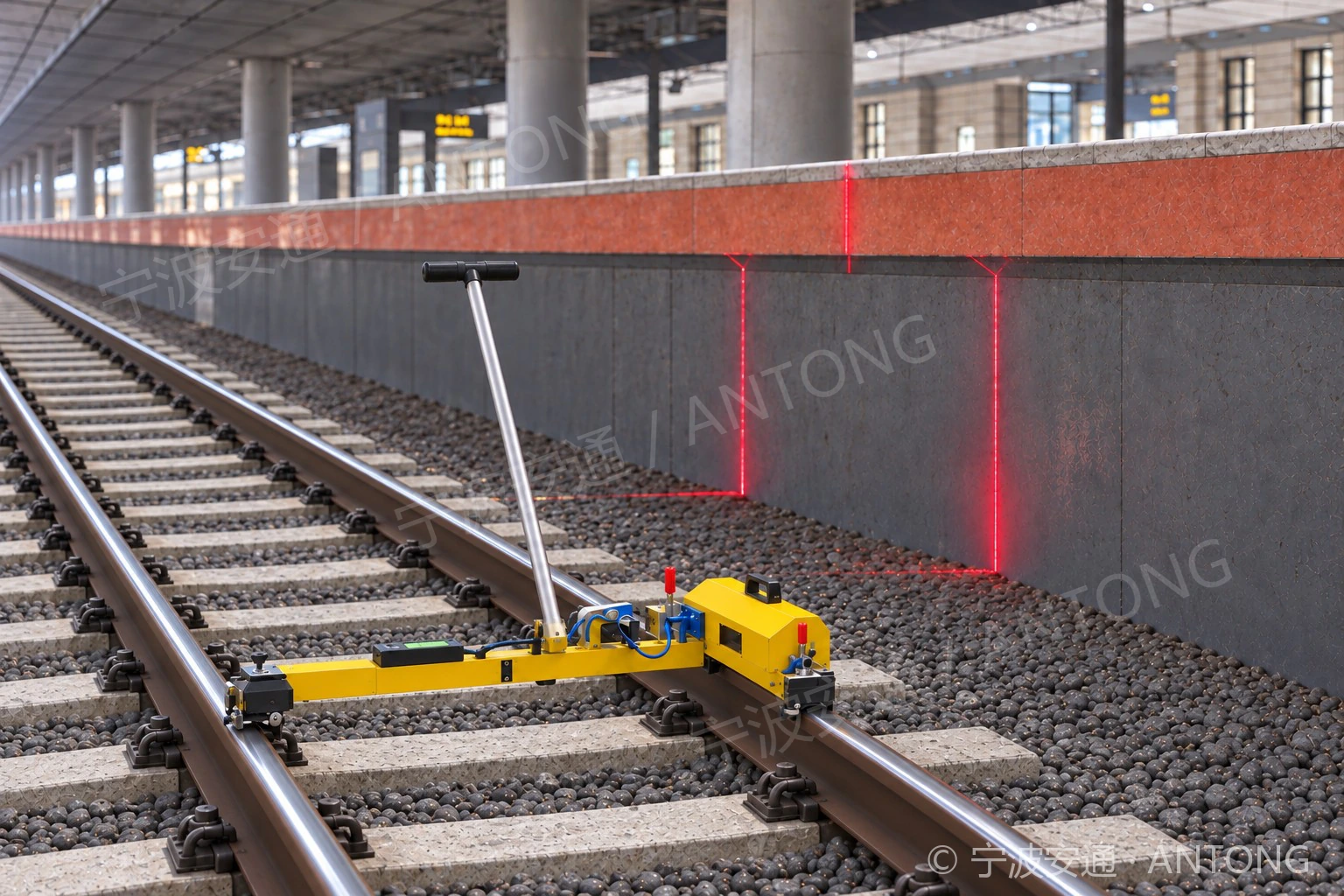

XJY-D Mobile Platform Clearance Measuring Instrument

Push-along platform clearance measurement using infrared laser and image recognition. Also measures gauge, cant and canopy clearance; supports Wi-Fi, SD backup and a detachable folding structure.

View equipment & technical details

FJ-03 / Platform clearance

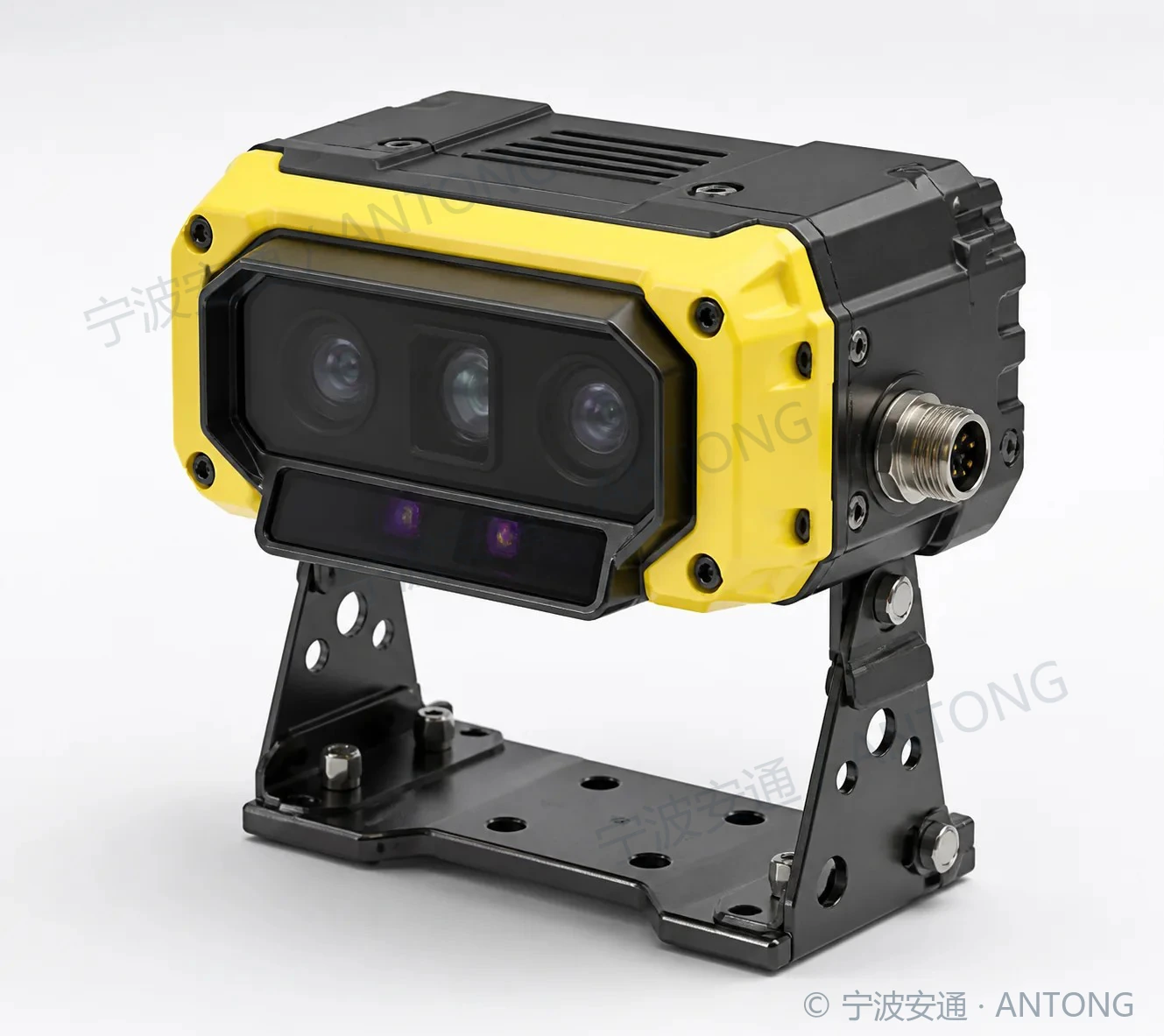

Clearance / Canopy Measuring Module
