Rail Straightness Measuring Instrument (Single Measurement)
ZD-01
Designed for field operations
Non-contact optoelectronic measurement of one face per operation: running surface or gauge face. Adjust the locating blocks to change faces; automatic storage and Bluetooth/USB transfer are supported.
Confirm configuration, range and operating conditions for your project.
Technical & application details
V91 · Page 24Source: Antong Company & Product Brochure V91. Refer to the original brochure and consult our technical team for configuration and applicability of specifications and standards.
Related equipment
Explore this category

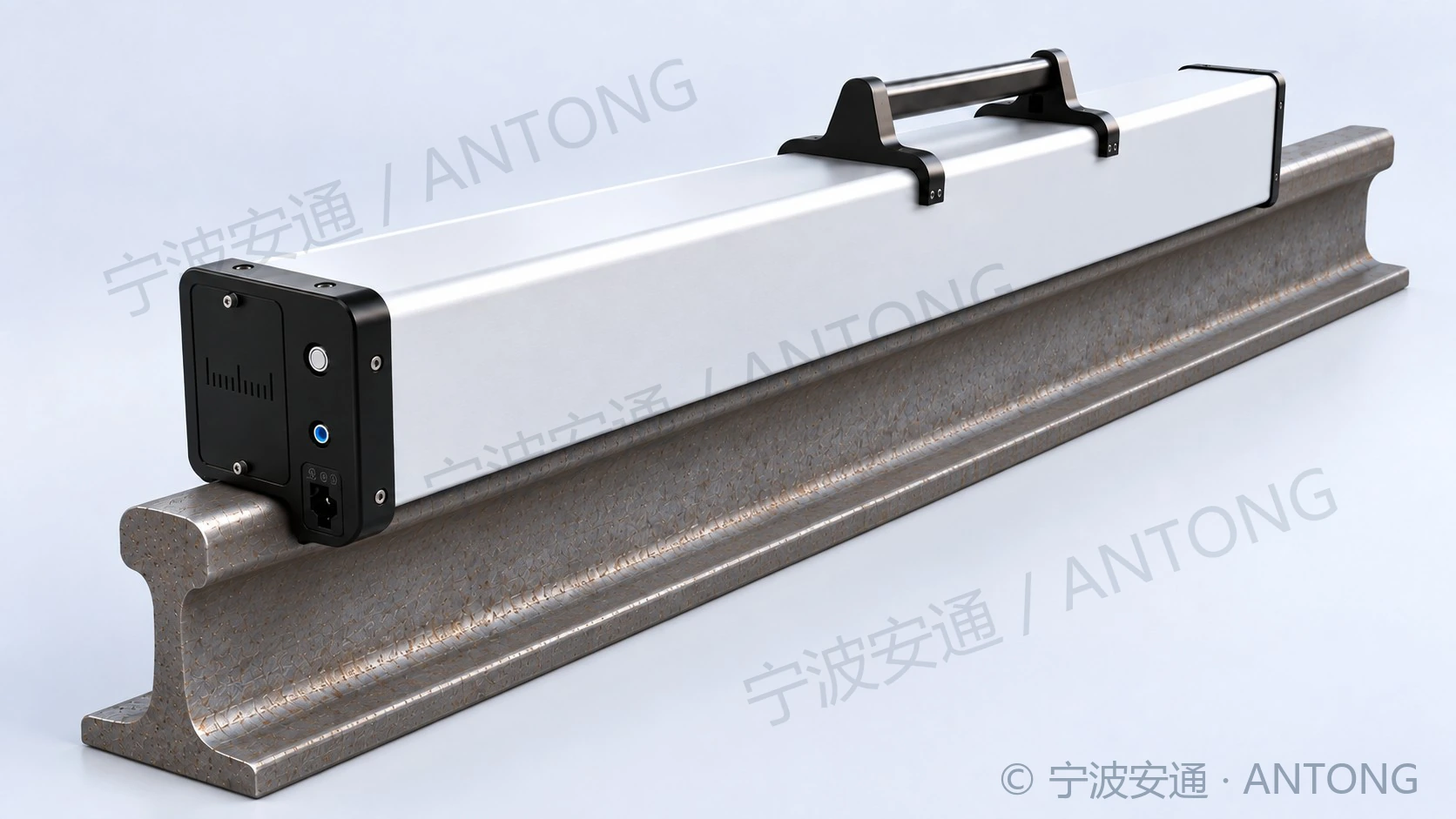

Rail Straightness Measuring Instrument (Dual Measurement)
Non-contact optoelectronic measurement of both the running surface and gauge face in one operation. A mobile terminal supports automatic storage and Bluetooth/USB transfer.
Electronic One-Metre Straightedge
A magnetic-attachment digital one-metre straightedge for rail weld alignment and straightness inspection.

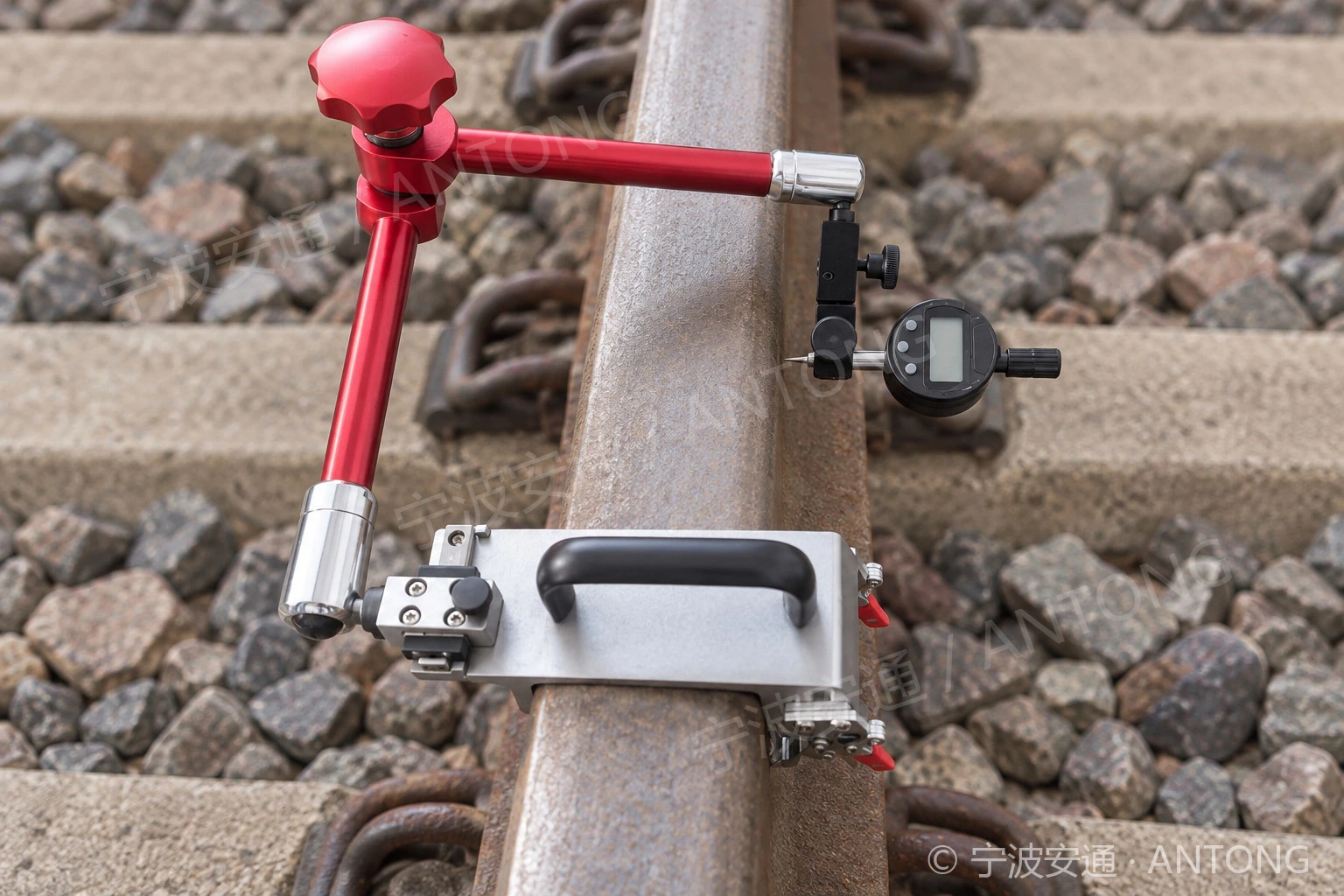

Rail Surface Damage Measuring Instrument
